1、介绍

Webhook就是一种HTTP回调，用于在某种情况下执行某些动作，Webhook不是K8S独有的，很多场景下都可以进行Webhook，比如在提交完代码后调用一个Webhook自动构建docker镜像。

Admission Webhook 是 api-server 对外提供的一个扩展能力，api-server 作为 kubernetes 的核心，几乎所有组件都需要跟他打交道，基本可以说掌控了 k8s 的 api-server，你就可以控制 k8s 的行为。

在早期的版本 api-server 并没有提供 admissionresgistration 的能力（v1.9之前），当我们要对 k8s 进行控制的时候，只能重新编译 api-server。比如你想阻止某个控制器的行为，或拦截某个控制器的资源修改。admission webhook 就是提供了这样的能力，比如你希望某个特定 label 标签的 pod 再创建的时候都注入 sidercar，或者阻止不合规的资源。

（1）K8S中提供了自定义资源类型和自定义控制器来扩展功能：

Admission Webhook 包涵两种 CRD：mutatingwebhookconfiguration 和 validatingwebhookconfiguration。

下面是一个 mutatingwebhookconfiguration 的CRD文件：

apiVersion: admissionregistration.k8s.io/v1
kind: MutatingWebhookConfiguration
metadata:
  name: mutating-test.shikanon.com
webhooks:
- admissionReviewVersions: # admissionReviewVersions 请求的版本
  - v1beta1
  - v1
  clientConfig: # 客户端配置
    caBundle: # ca证书
    service: # 调用服务相关配置，这里是一个k8s的service，访问地址是<name>.<namespace>.svc:<port>/<path>
      name: mutating-test
      namespace: testing-tools
      path: /mutation-deployment
      port: 8000
  failurePolicy: Ignore # 调用失败策略，Ignore为忽略错误, failed表示admission会处理错误
  matchPolicy: Exact
  name: mutating-test.shikanon.com # webhook名称
  namespaceSelector: {} # 命名空间过滤条件
  objectSelector: # 对象过滤条件
    matchExpressions:
    - key: mutating-test-webhook
      operator: In
      values:
      - enabled
      - "true"
  # reinvocationPolicy表示再调度策略，因为webhook本身没有顺序性，因此每个修改后可能又被其他webhook修改，所以提供
  # 一个策略表示是否需要被多次调用，Never 表示只会调度一次，IfNeeded 表示资源被修改后会再调度这个webhook
  reinvocationPolicy: Never
  rules: # 规则
  - apiGroups:
    - apps
    apiVersions:
    - v1
    operations:
    - CREATE
    - UPDATE
    resources:
    - deployments
    scope: '*' # 匹配范围，"*" 匹配所有资源，但不包括子资源，"*/*" 匹配所有资源，包括子资源
  sideEffects: None # 这个表示webhook是否存在副作用，主要针对 dryRun 的请求
  timeoutSeconds: 30

（2）还提供了动态准入控制，其实就是通过Webhook来实现准入控制，分为两种：

• 验证性质的准入 Webhook （Validating Admission Webhook）

• 修改性质的准入 Webhook （Mutating Admission Webhook）

Admission Webhook有哪些使用场景？如下

• 在资源持久化到ETCD之前进行修改（Mutating Webhook），比如增加init Container或者sidecar Container

• 在资源持久化到ETCD之前进行校验（Validating Webhook），不满足条件的资源直接拒绝并给出相应信息

istio就是通过 mutating webhooks 来自动将Envoy这个 sidecar 容器注入到 Pod 中去的。

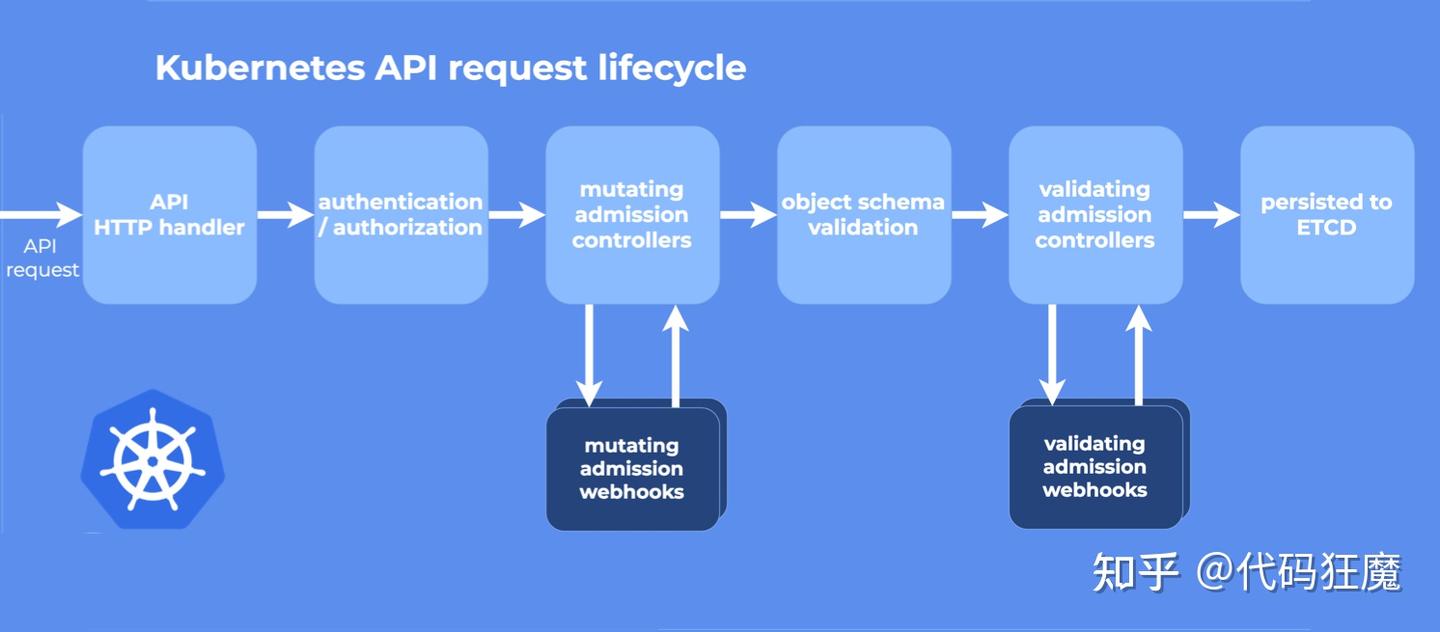

上面提到K8S的动态准入控制是通过Webhook来实现的，那么它到底是在哪个环节执行的？请看下图

从图中可以看到，先执行的是Mutating Webhook，它可以对资源进行修改，然后执行的是Validating Webhook，它可以拒绝或者接受请求，但是它不能修改请求。

api-server 通过读取 mutatingwebhookconfiguration 和 validatingwebhookconfiguration 的 CR 文件的目标地址，然后回调用户自定义的服务。

                                            ┌──────────────────────────────────┐
             ┌─────────────────┐            │                                  │
    apply    │                 │    read    │  validatingwebhookconfiguration  │
────────────►│    api-server   │◄───────────┤                                  │
             │                 │            │  mutatingwebhookconfiguration    │
             └────────┬────────┘            │                                  │
                      │                     └──────────────────────────────────┘
                      │
                      │  回调
                      │
                      │
             ┌────────▼────────┐
             │                 │
             │  webhookservice │
             │                 │
             └─────────────────┘

工作原理和步骤

• 用户发送一个 Kubernetes 资源创建、更新或删除的请求;

• 请求到达 Kubernetes API Server；

• 经过认证、授权；

• Kubernetes API Server 将请求发送给Mutating Admission Controller 进行处理；

• Admission Webhook 对请求进行审查和修改，并返回处理结果给 Admission Controller；

• Kubernetes API Server 将请求发送给Validating Admission Controller 进行处理；

• Admission Webhook 对请求进行校验，并返回处理结果给 Admission Controller；

• Admission Controller 根据 Admission Webhook 的处理结果决定是否允许请求通过。

2、Admission Webhook列表

根据k8s官网，列举部分准入控制器：

3、开发K8S Webhook最佳实践

我们以一个简单的Webhook作为例子，该Webhook会在创建Deployment资源的时候检查它是否有相应的标签，如果没有的话，则加上（Mutating Webhook），然后在检验它是否有相应的标签（Validating Webhook），有则创建该Deployment，否则拒绝并给出相应错误提示。

K8S中Webhook的调用原理为首先向K8S集群中注册一个Admission Webhook（Validating / Mutating），所谓注册是向K8S集群注册一个地址，而实际Webhook服务可能跑在Pod里，也可能跑在开发机上；当创建资源的时候会调用这些Webhook进行修改或验证，最后持久化到ETCD中。

3.1、检查是否开启了动态准入控制

查看APIServer是否开启了MutatingAdmissionWebhook和
ValidatingAdmissionWebhook

# 获取apiserver pod名字
apiserver_pod_name=`kubectl get --no-headers=true po -n kube-system | grep kube-apiserver | awk '{ print $1 }'`
# 查看api server的启动参数plugin
kubectl get po $apiserver_pod_name -n kube-system -o yaml | grep plugin

如果输出如下，说明已经开启

- --enable-admission-plugins=NodeRestriction,MutatingAdmissionWebhook,ValidatingAdmissionWebhook

3.2、webhook简单实例

https://github.com/scriptwang/admission-webhook-example

文件列表如下

|-- Dockerfile
|-- LICENSE
|-- README.md
|-- build
|-- debug               # debug相关K8S配置
|   |-- mutatingwebhook.yaml
|   |-- service.yaml
|   |-- sleep-no-validation.yaml
|   |-- sleep-with-labels.yaml
|   |-- sleep.yaml
|   |-- sshportforward.sh
|   |-- validatingwebhook.yaml
|   |-- webhook-create-signed-cert.sh
|   `-- webhook-patch-ca-bundle.sh
|-- deployment           # 部署相关K8S配置
|   |-- deployment.yaml
|   |-- mutatingwebhook.yaml
|   |-- rbac.yaml
|   |-- service.yaml
|   |-- sleep-no-validation.yaml
|   |-- sleep-with-labels.yaml
|   |-- sleep.yaml
|   |-- validatingwebhook.yaml
|   |-- webhook-create-signed-cert.sh
|   `-- webhook-patch-ca-bundle.sh
|-- go.mod
|-- go.sum
|-- main.go     # webhook核心文件，启动server，监听端口
|-- mod.sh
|-- webhook.go  # webhook核心文件，处理业务逻辑

其中main.go和webhook.go是整个webhook的核心，前者用于启动Server，监听端口，后者用于实现核心业务逻辑。

（1）webhook.go

其核心在serve方法，根据传进来的path判断是mutate还是validate，然后执行相应的操作，这个path是自己在MutatingWebhookConfiguration或者ValidatingWebhookConfiguration中定义的

package main

import (
	"bytes"
	"encoding/json"
	"fmt"
	"io/ioutil"
	"net/http"
	"strings"
	"time"

	"github.com/golang/glog"
	"k8s.io/api/admission/v1beta1"
	admissionregistrationv1beta1 "k8s.io/api/admissionregistration/v1beta1"
	appsv1 "k8s.io/api/apps/v1"
	corev1 "k8s.io/api/core/v1"
	metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
	"k8s.io/apimachinery/pkg/runtime"
	"k8s.io/apimachinery/pkg/runtime/serializer"
	v1 "k8s.io/kubernetes/pkg/apis/core/v1"
)

var (
	runtimeScheme = runtime.NewScheme()
	codecs        = serializer.NewCodecFactory(runtimeScheme)
	deserializer  = codecs.UniversalDeserializer()

	// (https://github.com/kubernetes/kubernetes/issues/57982)
	defaulter = runtime.ObjectDefaulter(runtimeScheme)
)

var (
	ignoredNamespaces = []string{
		metav1.NamespaceSystem,
		metav1.NamespacePublic,
	}
	requiredLabels = []string{
		nameLabel,
		instanceLabel,
		versionLabel,
		componentLabel,
		partOfLabel,
		managedByLabel,
	}
	addLabels = map[string]string{
		nameLabel:      NA,
		instanceLabel:  NA,
		versionLabel:   NA,
		componentLabel: NA,
		partOfLabel:    NA,
		managedByLabel: NA,
	}
)

const (
	admissionWebhookAnnotationValidateKey = "admission-webhook-example.qikqiak.com/validate"
	admissionWebhookAnnotationMutateKey   = "admission-webhook-example.qikqiak.com/mutate"
	admissionWebhookAnnotationStatusKey   = "admission-webhook-example.qikqiak.com/status"

	nameLabel      = "app.kubernetes.io/name"
	instanceLabel  = "app.kubernetes.io/instance"
	versionLabel   = "app.kubernetes.io/version"
	componentLabel = "app.kubernetes.io/component"
	partOfLabel    = "app.kubernetes.io/part-of"
	managedByLabel = "app.kubernetes.io/managed-by"

	NA = "not_available"
)

type WebhookServer struct {
	server *http.Server
}

// Webhook Server parameters
type WhSvrParameters struct {
	port           int    // webhook server port
	certFile       string // path to the x509 certificate for https
	keyFile        string // path to the x509 private key matching `CertFile`
	sidecarCfgFile string // path to sidecar injector configuration file
}

type patchOperation struct {
	Op    string      `json:"op"`
	Path  string      `json:"path"`
	Value interface{} `json:"value,omitempty"`
}

func init() {
	_ = corev1.AddToScheme(runtimeScheme)
	_ = admissionregistrationv1beta1.AddToScheme(runtimeScheme)
	// defaulting with webhooks:
	// https://github.com/kubernetes/kubernetes/issues/57982
	_ = v1.AddToScheme(runtimeScheme)
}

func admissionRequired(ignoredList []string, admissionAnnotationKey string, metadata *metav1.ObjectMeta) bool {
	// skip special kubernetes system namespaces
	for _, namespace := range ignoredList {
		if metadata.Namespace == namespace {
			glog.Infof("Skip validation for %v for it's in special namespace:%v", metadata.Name, metadata.Namespace)
			return false
		}
	}

	annotations := metadata.GetAnnotations()
	if annotations == nil {
		annotations = map[string]string{}
	}

	var required bool
	switch strings.ToLower(annotations[admissionAnnotationKey]) {
	default:
		required = true
	case "n", "no", "false", "off":
		required = false
	}
	return required
}

func mutationRequired(ignoredList []string, metadata *metav1.ObjectMeta) bool {
	required := admissionRequired(ignoredList, admissionWebhookAnnotationMutateKey, metadata)
	annotations := metadata.GetAnnotations()
	if annotations == nil {
		annotations = map[string]string{}
	}
	status := annotations[admissionWebhookAnnotationStatusKey]

	if strings.ToLower(status) == "mutated" {
		required = false
	}

	glog.Infof("Mutation policy for %v/%v: required:%v", metadata.Namespace, metadata.Name, required)
	return required
}

func validationRequired(ignoredList []string, metadata *metav1.ObjectMeta) bool {
	required := admissionRequired(ignoredList, admissionWebhookAnnotationValidateKey, metadata)
	glog.Infof("Validation policy for %v/%v: required:%v", metadata.Namespace, metadata.Name, required)
	return required
}

func updateAnnotation(target map[string]string, added map[string]string) (patch []patchOperation) {
	for key, value := range added {
		if target == nil || target[key] == "" {
			target = map[string]string{}
			patch = append(patch, patchOperation{
				Op:   "add",
				Path: "/metadata/annotations",
				Value: map[string]string{
					key: value,
				},
			})
		} else {
			patch = append(patch, patchOperation{
				Op:    "replace",
				Path:  "/metadata/annotations/" + key,
				Value: value,
			})
		}
	}
	return patch
}

func updateLabels(target map[string]string, added map[string]string) (patch []patchOperation) {
	values := make(map[string]string)
	for key, value := range added {
		if target == nil || target[key] == "" {
			values[key] = value
		}
	}
	patch = append(patch, patchOperation{
		Op:    "add",
		Path:  "/metadata/labels",
		Value: values,
	})
	return patch
}

func createPatch(availableAnnotations map[string]string, annotations map[string]string, availableLabels map[string]string, labels map[string]string) ([]byte, error) {
	var patch []patchOperation

	patch = append(patch, updateAnnotation(availableAnnotations, annotations)...)
	patch = append(patch, updateLabels(availableLabels, labels)...)

	return json.Marshal(patch)
}

// validate deployments and services
func (whsvr *WebhookServer) validate(ar *v1beta1.AdmissionReview, log *bytes.Buffer) *v1beta1.AdmissionResponse {
	req := ar.Request
	var (
		availableLabels                 map[string]string
		objectMeta                      *metav1.ObjectMeta
		resourceNamespace, resourceName string
	)

	log.WriteString(fmt.Sprintf("\n======begin Admission for Namespace=[%v], Kind=[%v], Name=[%v]======", req.Namespace, req.Kind.Kind, req.Name))

	switch req.Kind.Kind {
	case "Deployment":
		var deployment appsv1.Deployment
		if err := json.Unmarshal(req.Object.Raw, &deployment); err != nil {
			log.WriteString(fmt.Sprintf("\nCould not unmarshal raw object: %v", err))
			glog.Errorf(log.String())
			return &v1beta1.AdmissionResponse{
				Result: &metav1.Status{
					Message: err.Error(),
				},
			}
		}
		resourceName, resourceNamespace, objectMeta = deployment.Name, deployment.Namespace, &deployment.ObjectMeta
		availableLabels = deployment.Labels
	case "Service":
		var service corev1.Service
		if err := json.Unmarshal(req.Object.Raw, &service); err != nil {
			log.WriteString(fmt.Sprintf("\nCould not unmarshal raw object: %v", err))
			glog.Errorf(log.String())
			return &v1beta1.AdmissionResponse{
				Result: &metav1.Status{
					Message: err.Error(),
				},
			}
		}
		resourceName, resourceNamespace, objectMeta = service.Name, service.Namespace, &service.ObjectMeta
		availableLabels = service.Labels
	//其他不支持的类型
	default:
		msg := fmt.Sprintf("\nNot support for this Kind of resource  %v", req.Kind.Kind)
		log.WriteString(msg)
		return &v1beta1.AdmissionResponse{
			Result: &metav1.Status{
				Message: msg,
			},
		}
	}

	if !validationRequired(ignoredNamespaces, objectMeta) {
		log.WriteString(fmt.Sprintf("Skipping validation for %s/%s due to policy check", resourceNamespace, resourceName))
		return &v1beta1.AdmissionResponse{
			Allowed: true,
		}
	}

	allowed := true
	var result *metav1.Status
	log.WriteString(fmt.Sprintf("available labels: %s ", availableLabels))
	log.WriteString(fmt.Sprintf("required labels: %s", requiredLabels))
	for _, rl := range requiredLabels {
		if _, ok := availableLabels[rl]; !ok {
			allowed = false
			result = &metav1.Status{
				Reason: "required labels are not set",
			}
			break
		}
	}

	return &v1beta1.AdmissionResponse{
		Allowed: allowed,
		Result:  result,
	}
}

// main mutation process
func (whsvr *WebhookServer) mutate(ar *v1beta1.AdmissionReview, log *bytes.Buffer) *v1beta1.AdmissionResponse {
	req := ar.Request
	var (
		availableLabels, availableAnnotations map[string]string
		objectMeta                            *metav1.ObjectMeta
		resourceNamespace, resourceName       string
	)

	log.WriteString(fmt.Sprintf("\n======begin Admission for Namespace=[%v], Kind=[%v], Name=[%v]======", req.Namespace, req.Kind.Kind, req.Name))
	log.WriteString("\n>>>>>>" + req.Kind.Kind)

	switch req.Kind.Kind {
	case "Deployment":
		var deployment appsv1.Deployment
		if err := json.Unmarshal(req.Object.Raw, &deployment); err != nil {
			log.WriteString(fmt.Sprintf("\nCould not unmarshal raw object: %v", err))
			glog.Errorf(log.String())
			return &v1beta1.AdmissionResponse{
				Result: &metav1.Status{
					Message: err.Error(),
				},
			}
		}
		resourceName, resourceNamespace, objectMeta = deployment.Name, deployment.Namespace, &deployment.ObjectMeta
		availableLabels = deployment.Labels
	case "Service":
		var service corev1.Service
		if err := json.Unmarshal(req.Object.Raw, &service); err != nil {
			log.WriteString(fmt.Sprintf("\nCould not unmarshal raw object: %v", err))
			glog.Errorf(log.String())
			return &v1beta1.AdmissionResponse{
				Result: &metav1.Status{
					Message: err.Error(),
				},
			}
		}
		resourceName, resourceNamespace, objectMeta = service.Name, service.Namespace, &service.ObjectMeta
		availableLabels = service.Labels
	//其他不支持的类型
	default:
		msg := fmt.Sprintf("\nNot support for this Kind of resource  %v", req.Kind.Kind)
		log.WriteString(msg)
		return &v1beta1.AdmissionResponse{
			Result: &metav1.Status{
				Message: msg,
			},
		}
	}

	if !mutationRequired(ignoredNamespaces, objectMeta) {
		log.WriteString(fmt.Sprintf("Skipping validation for %s/%s due to policy check", resourceNamespace, resourceName))
		return &v1beta1.AdmissionResponse{
			Allowed: true,
		}
	}

	annotations := map[string]string{admissionWebhookAnnotationStatusKey: "mutated"}
	patchBytes, err := createPatch(availableAnnotations, annotations, availableLabels, addLabels)
	if err != nil {
		return &v1beta1.AdmissionResponse{
			Result: &metav1.Status{
				Message: err.Error(),
			},
		}
	}

	log.WriteString(fmt.Sprintf("AdmissionResponse: patch=%v\n", string(patchBytes)))
	return &v1beta1.AdmissionResponse{
		Allowed: true,
		Patch:   patchBytes,
		PatchType: func() *v1beta1.PatchType {
			pt := v1beta1.PatchTypeJSONPatch
			return &pt
		}(),
	}
}

// Serve method for webhook server
func (whsvr *WebhookServer) serve(w http.ResponseWriter, r *http.Request) {
	//记录日志
	var log bytes.Buffer

	//读取从ApiServer过来的数据放到body
	var body []byte
	if r.Body != nil {
		if data, err := ioutil.ReadAll(r.Body); err == nil {
			body = data
		}
	}
	if len(body) == 0 {
		log.WriteString("empty body")
		glog.Info(log.String())
		//返回状态码400
		//如果在Apiserver调用此Webhook返回是400，说明APIServer自己传过来的数据是空
		http.Error(w, log.String(), http.StatusBadRequest)
		return
	}

	// verify the content type is accurate
	contentType := r.Header.Get("Content-Type")
	if contentType != "application/json" {
		log.WriteString(fmt.Sprintf("Content-Type=%s, expect `application/json`", contentType))
		glog.Errorf(log.String())
		//如果在Apiserver调用此Webhook返回是415，说明APIServer自己传过来的数据不是json格式，处理不了
		http.Error(w, log.String(), http.StatusUnsupportedMediaType)
		return
	}

	var admissionResponse *v1beta1.AdmissionResponse
	ar := v1beta1.AdmissionReview{}
	if _, _, err := deserializer.Decode(body, nil, &ar); err != nil {
		//组装错误信息
		log.WriteString(fmt.Sprintf("\nCan't decode body,error info is :  %s", err.Error()))
		glog.Errorln(log.String())
		//返回错误信息，形式表现为资源创建会失败，
		admissionResponse = &v1beta1.AdmissionResponse{
			Result: &metav1.Status{
				Message: log.String(),
			},
		}
	} else {
		fmt.Println(r.URL.Path)
		if r.URL.Path == "/mutate" {
			admissionResponse = whsvr.mutate(&ar, &log)
		} else if r.URL.Path == "/validate" {
			admissionResponse = whsvr.validate(&ar, &log)
		}
	}

	admissionReview := v1beta1.AdmissionReview{}
	if admissionResponse != nil {
		admissionReview.Response = admissionResponse
		if ar.Request != nil {
			admissionReview.Response.UID = ar.Request.UID
		}
	}

	resp, err := json.Marshal(admissionReview)
	if err != nil {
		log.WriteString(fmt.Sprintf("\nCan't encode response: %v", err))
		http.Error(w, log.String(), http.StatusInternalServerError)
	}
	glog.Infof("Ready to write reponse ...")
	if _, err := w.Write(resp); err != nil {
		log.WriteString(fmt.Sprintf("\nCan't write response: %v", err))
		http.Error(w, log.String(), http.StatusInternalServerError)
	}

	log.WriteString("\n======ended Admission already writed to reponse======")
	//东八区时间
	datetime := time.Now().In(time.FixedZone("GMT", 8*3600)).Format("2006-01-02 15:04:05")
	//最后打印日志
	glog.Infof(datetime + " " + log.String())
}

（2）main.go

启动服务，监听在443端口

package main

import (
	"context"
	"crypto/tls"
	"flag"
	"fmt"
	"net/http"
	"os"
	"os/signal"
	"syscall"

	"github.com/golang/glog"
)

func main() {
	var parameters WhSvrParameters

	// get command line parameters
	flag.IntVar(&parameters.port, "port", 443, "Webhook server port.")
	flag.StringVar(&parameters.certFile, "tlsCertFile", "/etc/webhook/certs/cert.pem", "File containing the x509 Certificate for HTTPS.")
	flag.StringVar(&parameters.keyFile, "tlsKeyFile", "/etc/webhook/certs/key.pem", "File containing the x509 private key to --tlsCertFile.")
	flag.Parse()

	pair, err := tls.LoadX509KeyPair(parameters.certFile, parameters.keyFile)
	if err != nil {
		glog.Errorf("Failed to load key pair: %v", err)
	}

	whsvr := &WebhookServer{
		server: &http.Server{
			Addr:      fmt.Sprintf(":%v", parameters.port),
			TLSConfig: &tls.Config{Certificates: []tls.Certificate{pair}},
		},
	}

	// define http server and server handler
	mux := http.NewServeMux()
	mux.HandleFunc("/mutate", whsvr.serve)
	mux.HandleFunc("/validate", whsvr.serve)
	whsvr.server.Handler = mux

	// start webhook server in new routine
	go func() {
		if err := whsvr.server.ListenAndServeTLS("", ""); err != nil {
			glog.Errorf("Failed to listen and serve webhook server: %v", err)
		}
	}()

	glog.Info("Server started")

	// listening OS shutdown singal
	signalChan := make(chan os.Signal, 1)
	signal.Notify(signalChan, syscall.SIGINT, syscall.SIGTERM)
	<-signalChan

	glog.Infof("Got OS shutdown signal, shutting down webhook server gracefully...")
	whsvr.server.Shutdown(context.Background())
}

3.3、部署

所谓部署，是将webhook服务编译好并创建镜像，然后推送到远程仓库，再将这个镜像部署成Pod，当然镜像这里已经准备好了，不需要创建，这里想表达的是先部署起来看看能不能跑，能跑在说后面的创建镜像和debug等

（1）创建RBAC

由于我们的webhook会对资源进行修改，所以需要单独给一个ServiceAccount，在K8S集群中直接创建即可

kubectl apply -f deployment/rbac.yaml

（2）证书认证

K8S集群默认是HTTPS通信的，所以APiserver调用webhook的过程也是HTTPS的，所以需要进行证书认证，证书认证相当于是给Service的域名进行认证（Service后面会创建），将Service域名放到认证请求server.csr文件中，然后创建一个K8S证书签署请求资源CertificateSigningRequest，APIServer签署该证书后生成server-cert.pem，再将最初创建的私钥server-key.pem和签署好的证书server-cert.pem放到Secret中供Deployment调用，详细过程看脚本
webhook-create-signed-cert.sh

认证很简单，执行该脚本即可，会创建一个名为
admission-webhook-example-certs的Secret

./deployment/webhook-create-signed-cert.sh

这一步顺便把Service创建了，因为证书是给该Service的域名颁发的

kubectl apply -f deployment/service.yaml

（3）部署deployment

看一下Deployment的编排文件，serviceAccount和secret依次是上面两步创建的

apiVersion: apps/v1
kind: Deployment
metadata:
  name: admission-webhook-example-deployment
  labels:
    app: admission-webhook-example
spec:
  replicas: 1
  selector:
    matchLabels:
      app: admission-webhook-example
  template:
    metadata:
      labels:
        app: admission-webhook-example
    spec:
      # 之前在RBAC中创建的serviceAccount
      serviceAccount: admission-webhook-example-sa
      containers:
        - name: admission-webhook-example
          # 该镜像已经存在
          image: kimoqi/admission-webhook-example:v1
          imagePullPolicy: Always
          args:
            - -tlsCertFile=/etc/webhook/certs/cert.pem
            - -tlsKeyFile=/etc/webhook/certs/key.pem
            - -alsologtostderr
            - -v=4
            - 2>&1
          volumeMounts:
            - name: webhook-certs
              mountPath: /etc/webhook/certs
              readOnly: true
      volumes:
        - name: webhook-certs
          secret:
            # 第二步中创建的Secret，用于证书认证
            secretName: admission-webhook-example-certs

部署Deployment

kubectl apply -f deployment/deployment.yaml

稍等片刻如果有类似如下输出说明Pod已经运行

kubectl get po
NAME                                       READY   STATUS
admission-webhook-example-deployment-xxx   1/1     Running

可以新开一个窗口查看对应日志配合验证

（4）部署validatingWebhook

查看编排文件
deployment/validatingwebhook.yaml，里面有一个占位符${CA_BUNDLE}

apiVersion: admissionregistration.k8s.io/v1beta1
kind: ValidatingWebhookConfiguration
metadata:
  name: validation-webhook-example-cfg
  labels:
    app: admission-webhook-example
webhooks:
  - name: required-labels.qikqiak.com
    clientConfig:
      service:
        name: admission-webhook-example-svc
        namespace: default
        path: "/validate"
      caBundle: ${CA_BUNDLE}
    rules:
      - operations: [ "CREATE" ]
        apiGroups: ["apps", ""]
        apiVersions: ["v1"]
        resources: ["deployments","services"]
    namespaceSelector:
      matchLabels:
        admission-webhook-example: enabled

这个是什么呢？webhook是APIServer调用的，此时APIServer相当于是一个客服端，webhook是一个服务端，可以对比下平时上网，打开https网站时是谁在验证域名的证书？是内置在浏览器里面的根证书在做验证，所以这里的CA_BUNDLE就类似于APIServer调用webhook的根证书，它去验证webhook证书。

所以先填充这个CA_BUNDLE后再执行

# 填充占位符
cat deployment/validatingwebhook.yaml | ./deployment/webhook-patch-ca-bundle.sh > /tmp/validatingwebhook.yaml

# 部署
kubectl apply -f /tmp/validatingwebhook.yaml

（5）部署MutatingWebhook

apiVersion: admissionregistration.k8s.io/v1beta1
kind: MutatingWebhookConfiguration
metadata:
  name: mutating-webhook-example-cfg
  labels:
    app: admission-webhook-example
webhooks:
  - name: mutating-example.qikqiak.com
    clientConfig:
      service:
        name: admission-webhook-example-svc
        namespace: default
        path: "/mutate"
      caBundle: ${CA_BUNDLE}
    rules:
      - operations: [ "CREATE" ]
        apiGroups: ["apps", ""]
        apiVersions: ["v1"]
        resources: ["deployments","services"]
    namespaceSelector:
      matchLabels:
        admission-webhook-example: enabled

部署流程和ValidatingWebhook一致，需要注意的是validate的逻辑上没有对应的标签拒绝创建，而mutate的逻辑没有对应的标签会加上对应的标签，而且执行顺序是先执行mutate再执行validate，所以有以下情况

• 只部署ValidatingWebhook：没有对应标签的资源会被拒绝创建

• 只部署MutatingWebhook：没有对应标签的资源会加上对应标签，然后成功创建

• 两者都部署：没有对应标签的资源会加上对应标签，也会通过ValidatingWebhook的验证，最终成功创建
